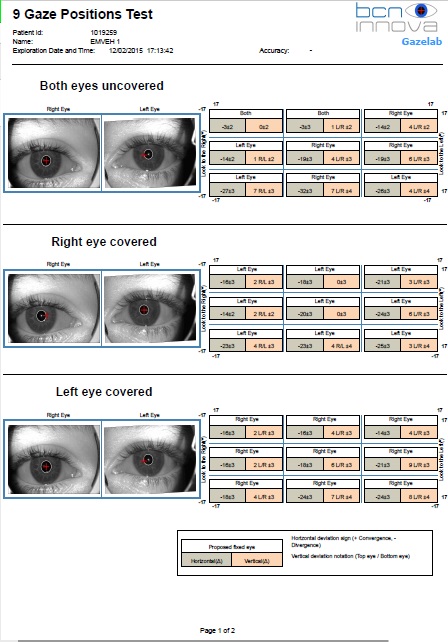

Gazelab is a medical device which is made up of a pair of glasses equipped with two infrared cameras. It also has a software for image recognition and eyetracking system, which allows you to record eye movements with great accuracy. Finally the gaze of the patient is guided by a laser projector to analize the 9 gaze positions.
ITS MAIN COMPONENTS ARE:
1. Infrared Cameras
2. Hot mirrors
3. Laser projector
4. Head subjection System
5. Image recognition software and a computer with the preinstalled software.
While the projection system guides the gaze, the cameras records both eyes and the computer analyzes the images (scanning the pupil and the iris) to measure:
|
|
Gazelab - How to do a Strbismus test |
A Syndrome

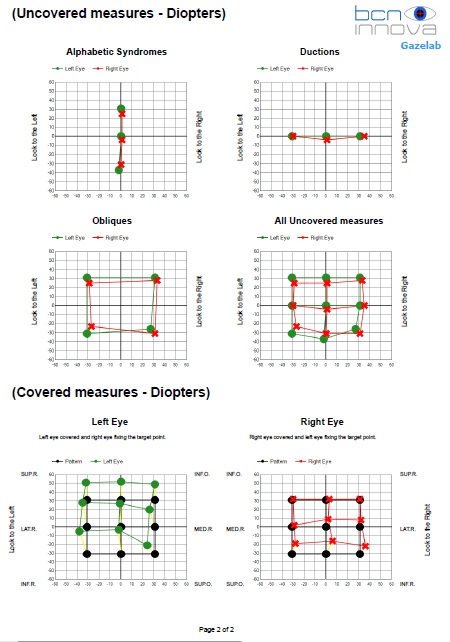

| DVD

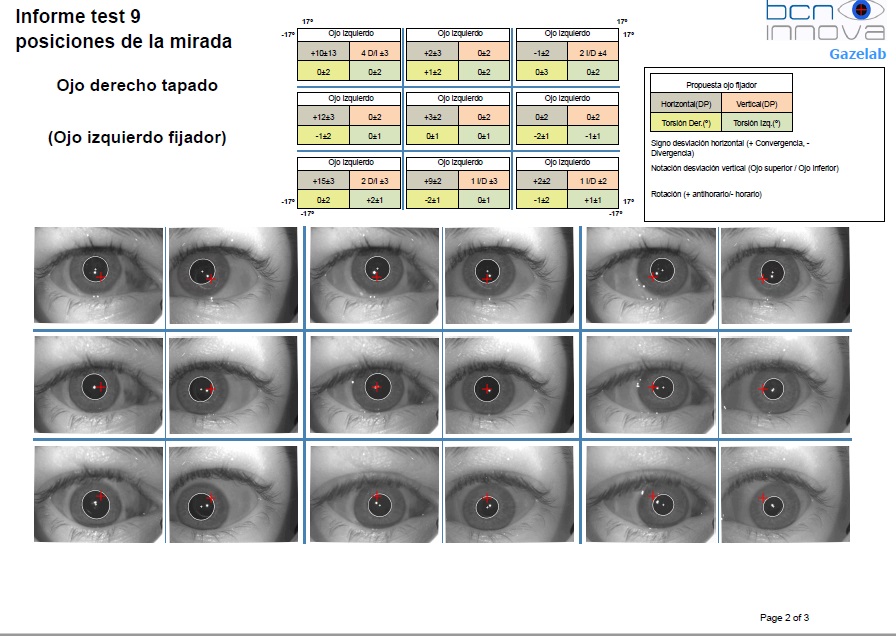

| Paresis right eye
|

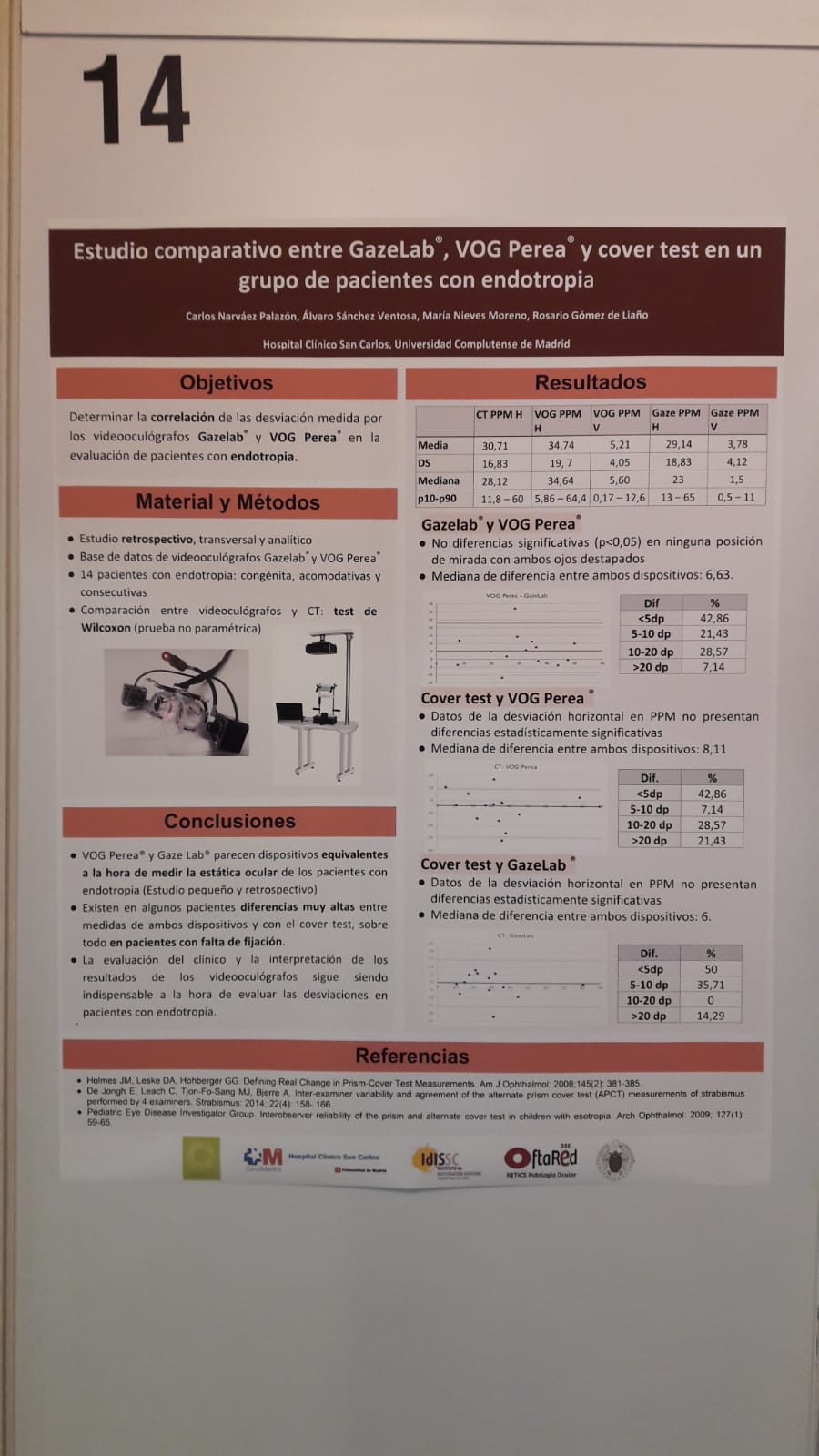

Some Studies
Release
More Videos and independent works

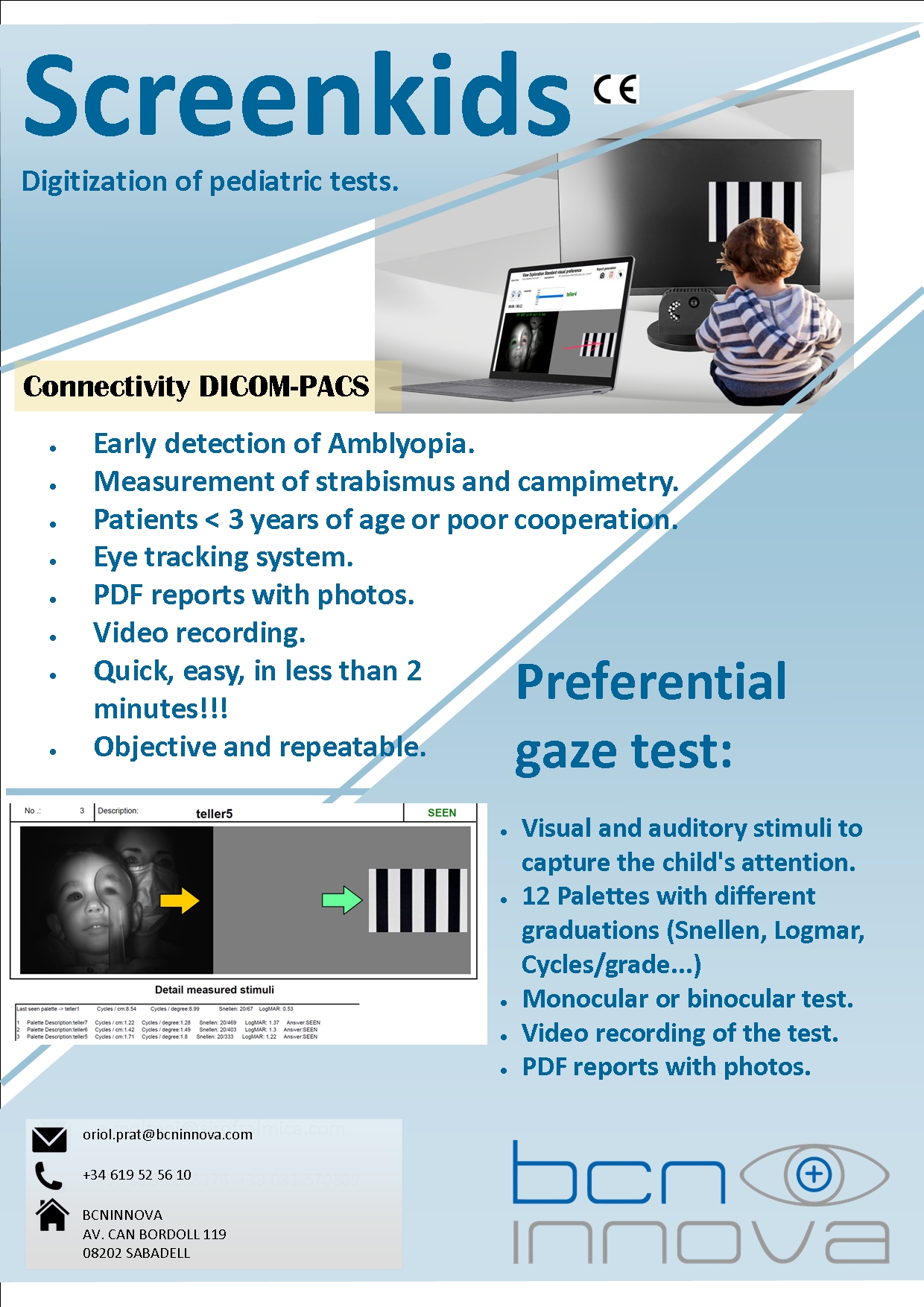

Nowadays, there are some standard Pediatric Ophthalmology tests for babies and young kids, however, they are not widelly extended due to its complexity. BCNINNOVA has used the Digitization to simplify the tests, generate authomatic reports and make the job easier.

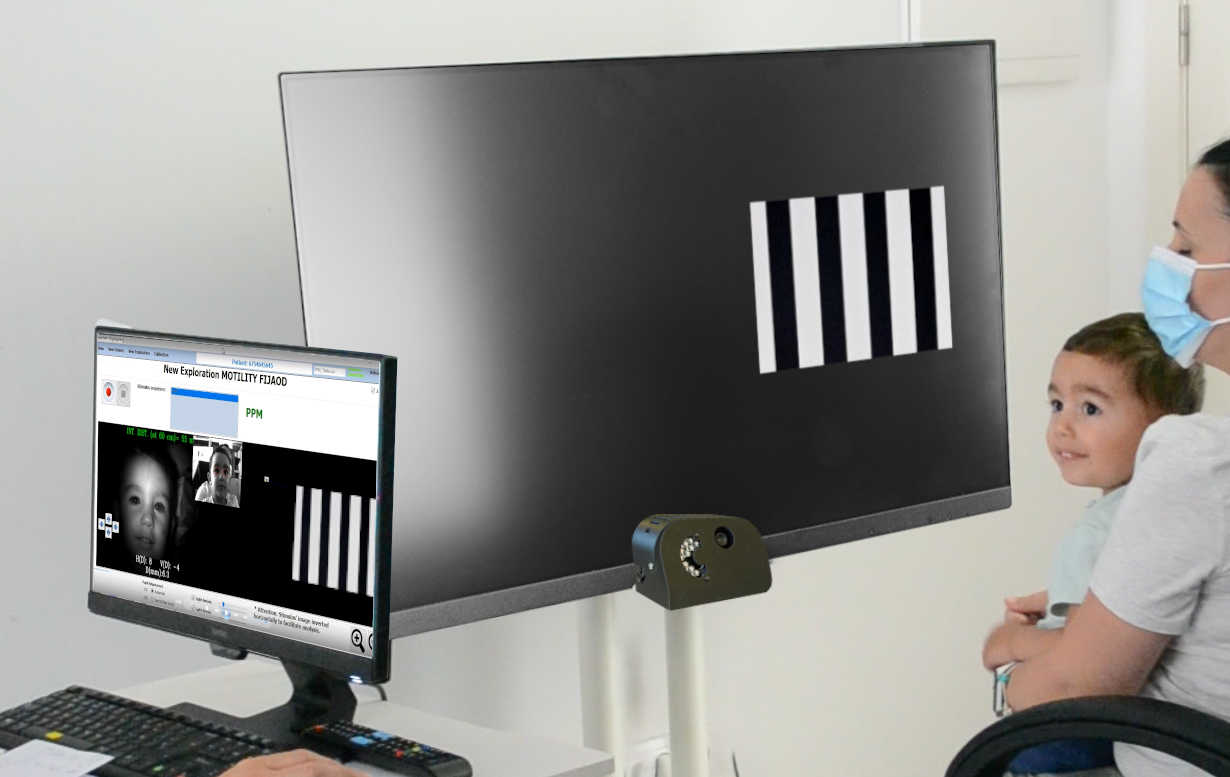

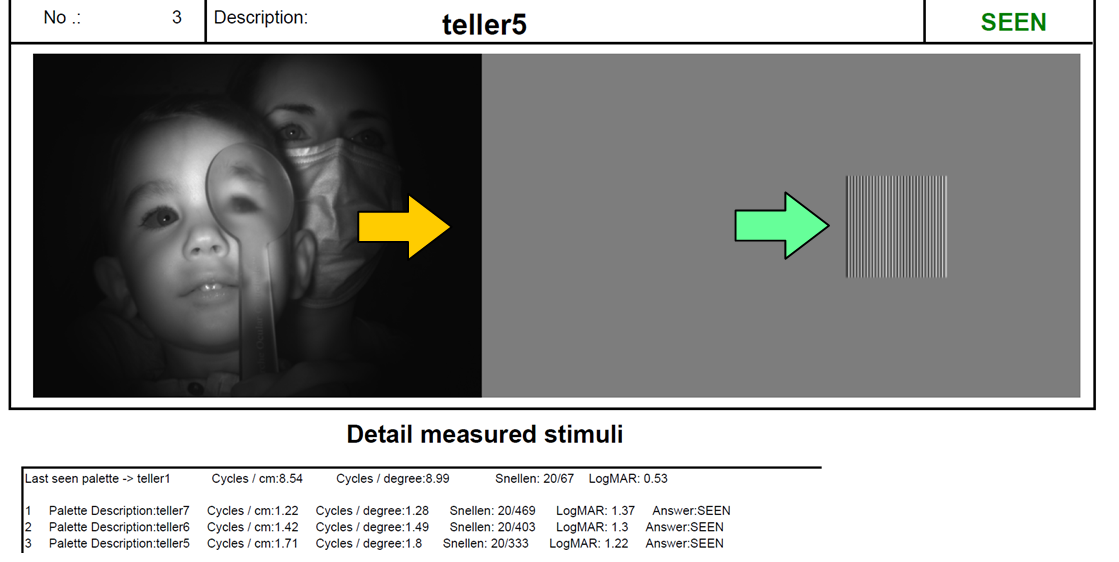

Preferential Look Test: The attention of the Baby is caught with funny videos and colourfull images in a 50 inch screen that cover all his visual field. The camera films the baby's face and the Augmented Reality software helps the explorer to identify whether the baby has seen the s timulus or not. All the images are recorded in a video and the diagnosys is done in a confortable way. Finally a PDF report is build with charts and photos.
Static and Dynamic Campimetry Test: It is a simplfied Campimetry for Kids older than 6 months. The Kid sits on their parent's lap (where they feel safe and confortable) while they look at the video at the same time that measurements are taken using the artificial intelligence software.

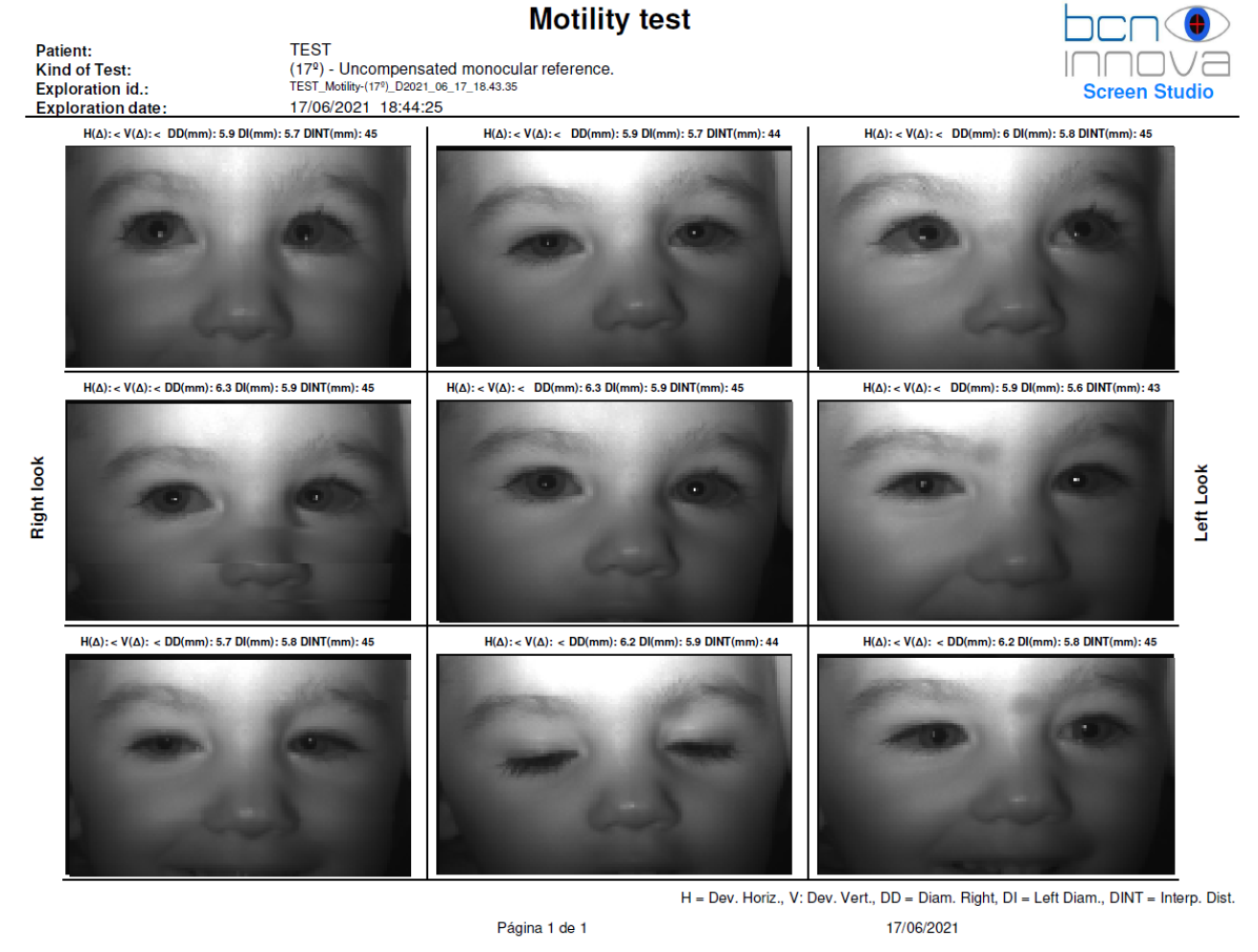

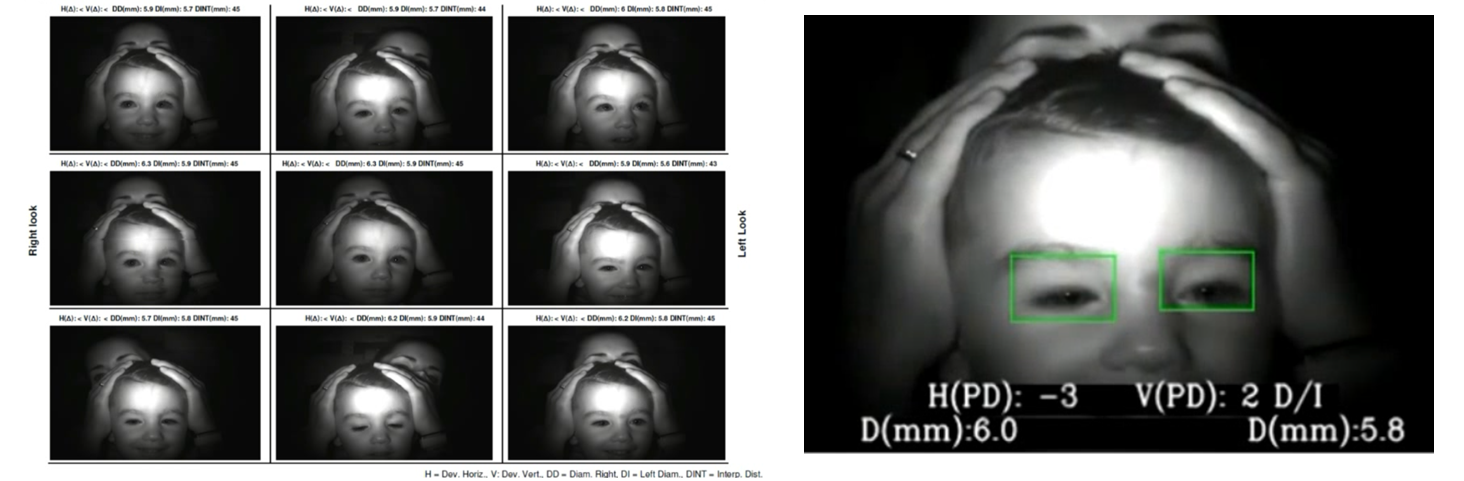

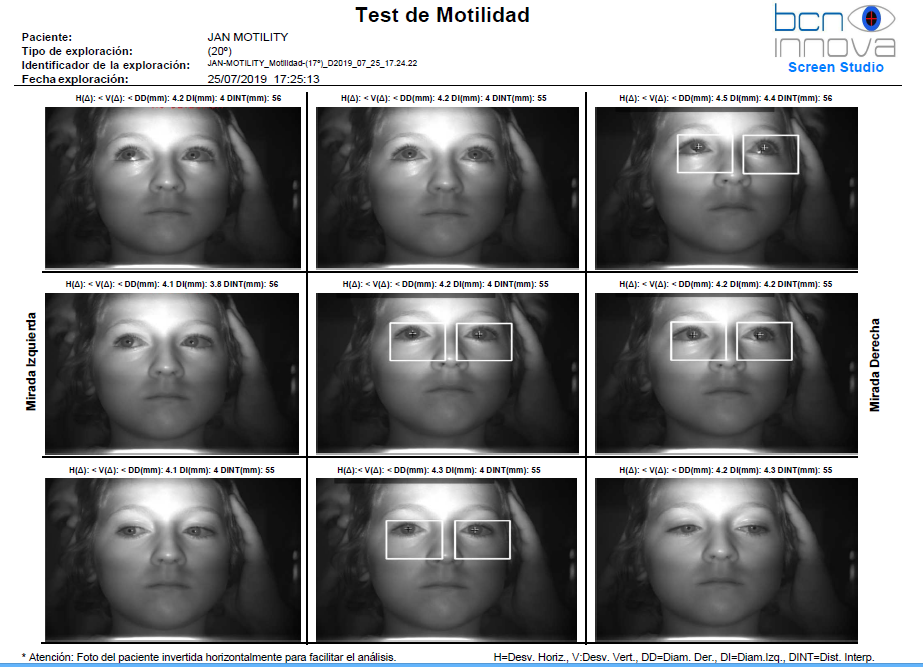

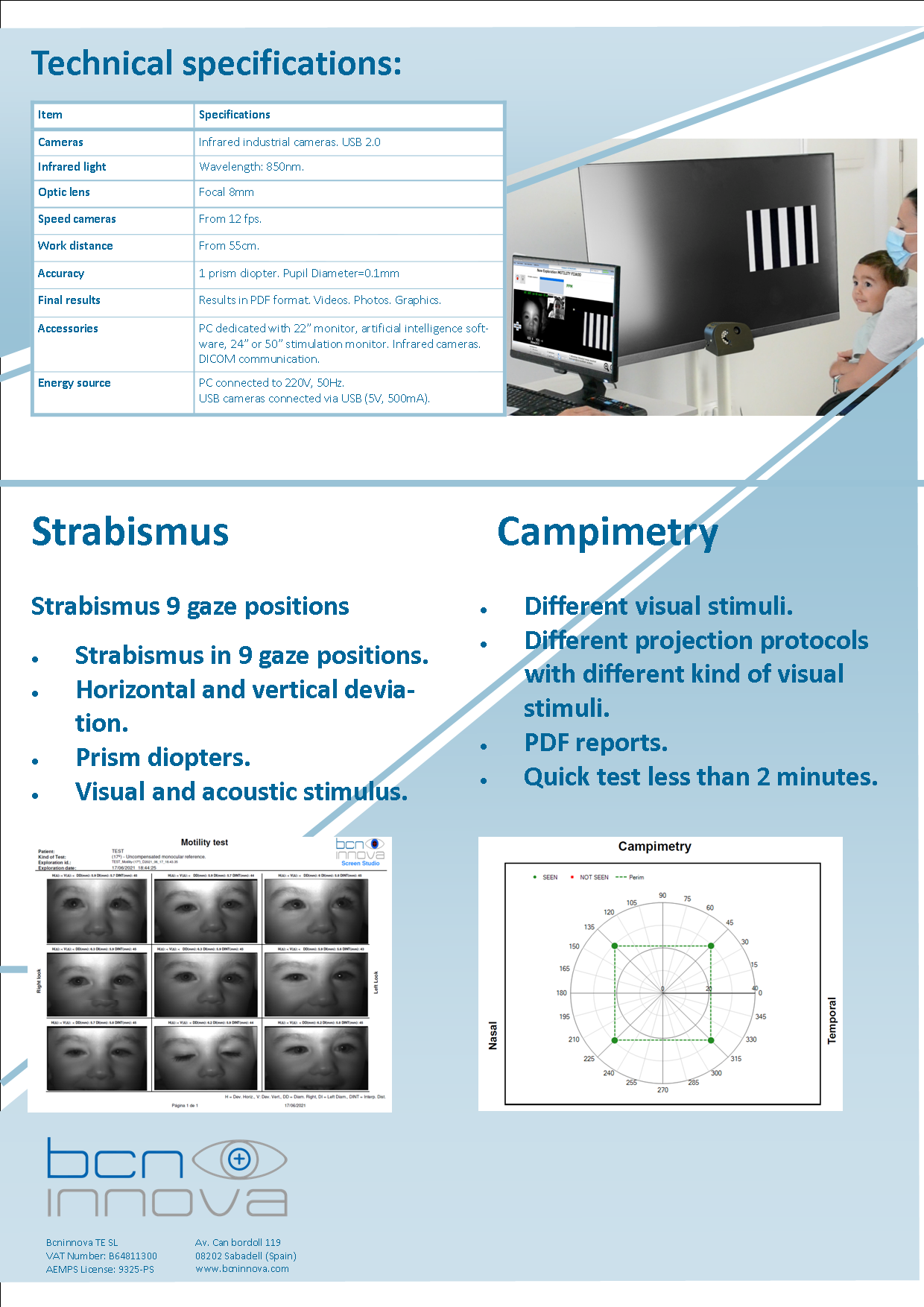

Motility and Strabismus:With ScreenKids you can measure easily and quickly the ocular deviation in the 9 Gaze Positions in Babies.
|
|
ScreenKids - Screening Child |
ScreenKids - Preferential Look |
How to use ScreenKids |
How to do a Motility Test |
Sensor is an analyzer of the sensorial behaviour of the vision. It dissociates the patient vision presenting independent images to each eye using artifical intelligence. The available tests are:
Subjective angle of deviation
Supression scotoma
Subjective Occular Rotation
Stereopsis
Aniseikonia
Virtual Lancaster Test
Virtual Synoptophore
|
|

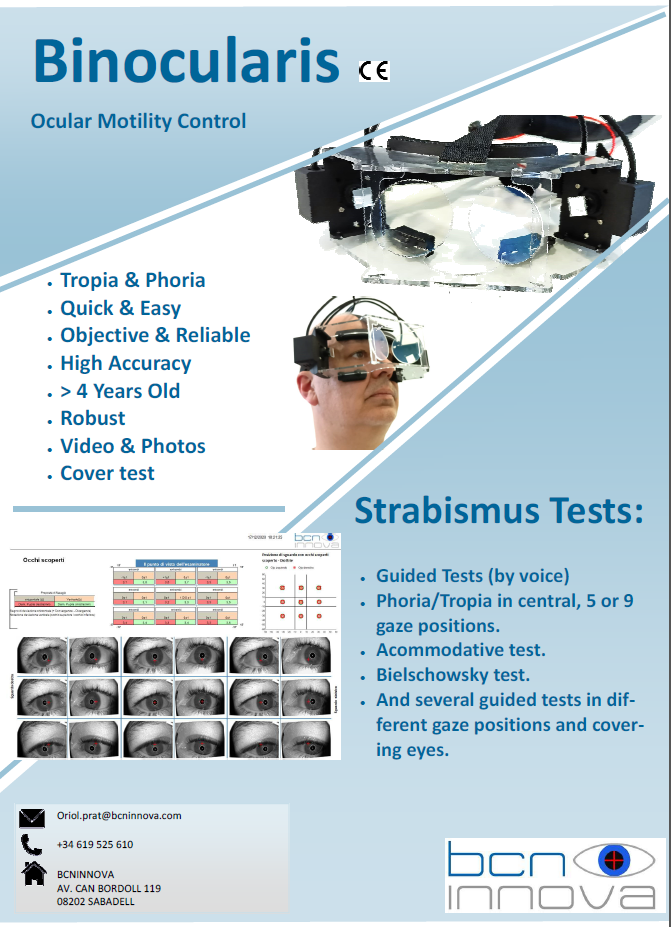

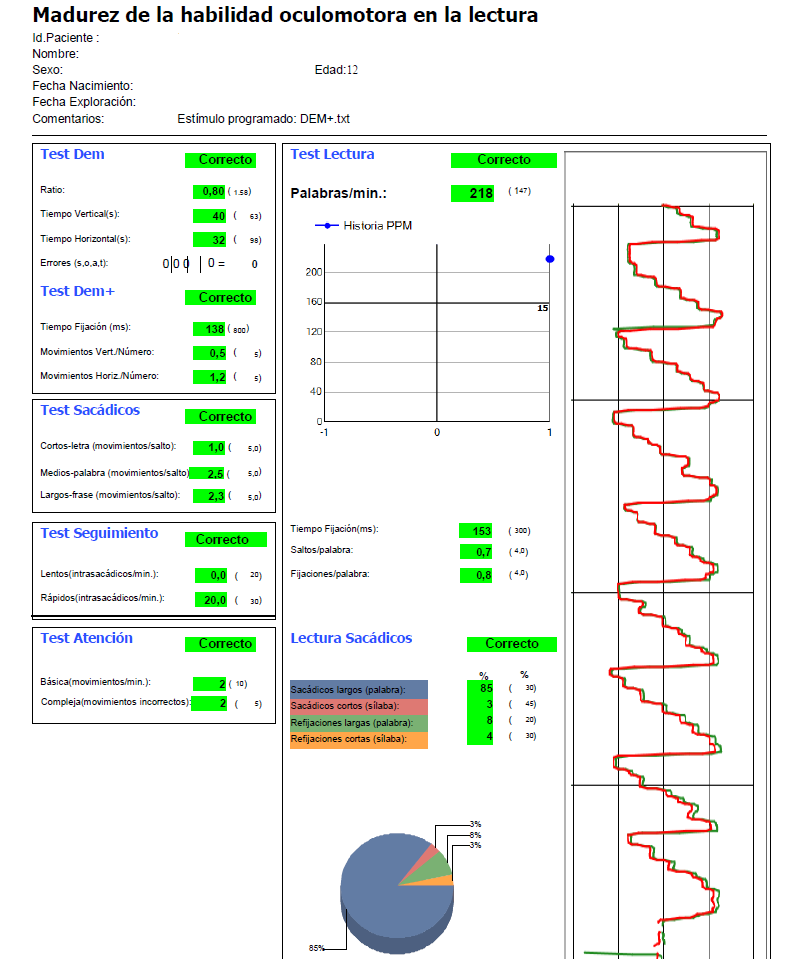

It's an ocular motility device that measures and analyzes the ocular motility disorders. It measures Strabismus (Tropias and Phorias) horizontal and vertical deviation, palsy eyes, restrictions). And also analyzes the reading maturity, predefined texts, customized texts, you could make DEM+ test, attention test, sacaccade test and so on.

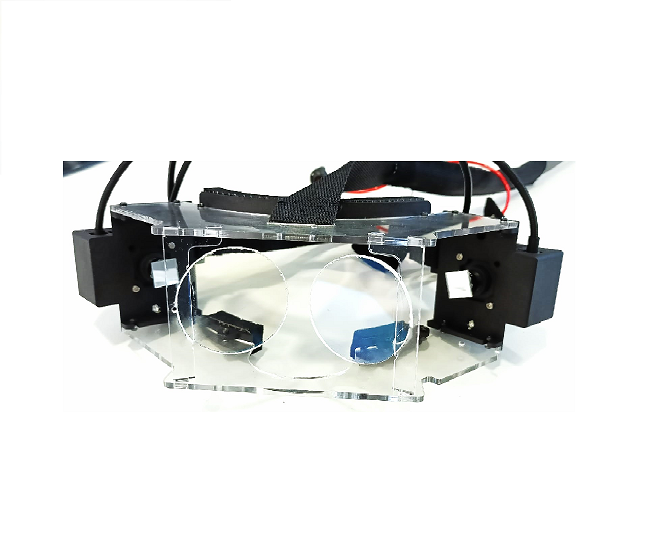

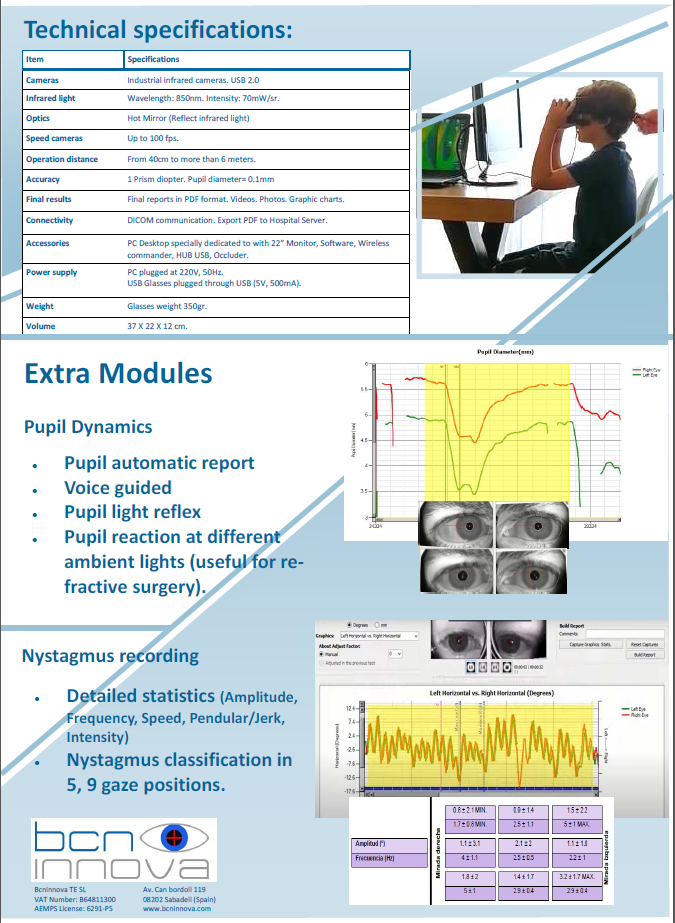

This glasses are equipped with two infrared cameras with an image recognition for the measurement of ocular movements. Also is equipped with a second screen with visual stimulus.
It's quick, objective, easy and reliable
|
|
Exotropia and vertical deviation |
Endroptria |
How to do a Strabismus Test |

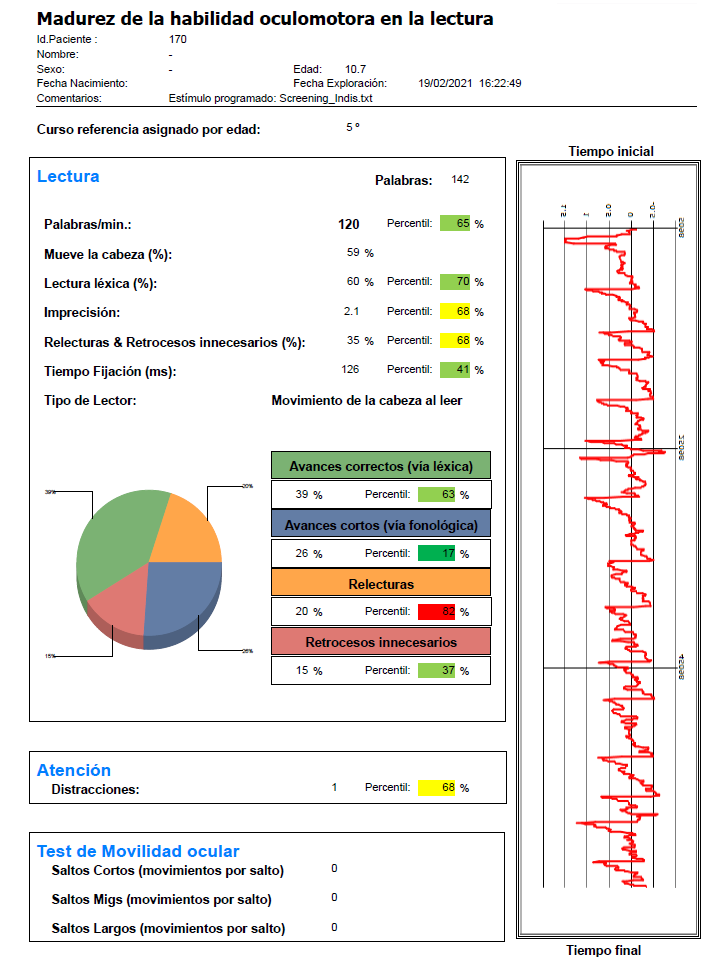

How to do a Reading Test |

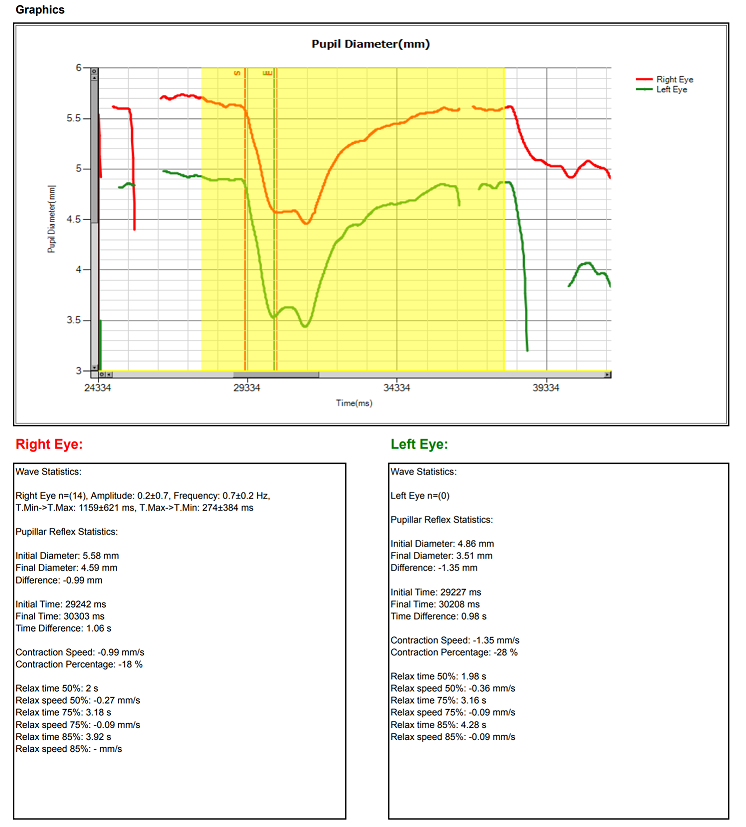

Pupilaris is a medical device, equipped with two infrared cameras with an image recognition for the binocular measurement of pupil diameter under light stimulus, and other ambient light conditions. Pupilaris records video and takes photo during the test, and build a PDF report with the results (graphics and photos).
You could explorer several diseases: Pupil ADIE, Alternate pupil reflex test, Anisocoria, Marcus Gunn Phenomenon, III par.
It's quick, easy and reliable.
Brochure
|
Light reflex Stimulus Report
|
Miosis Report
|
Anisocoria |
Alternate Reflex |

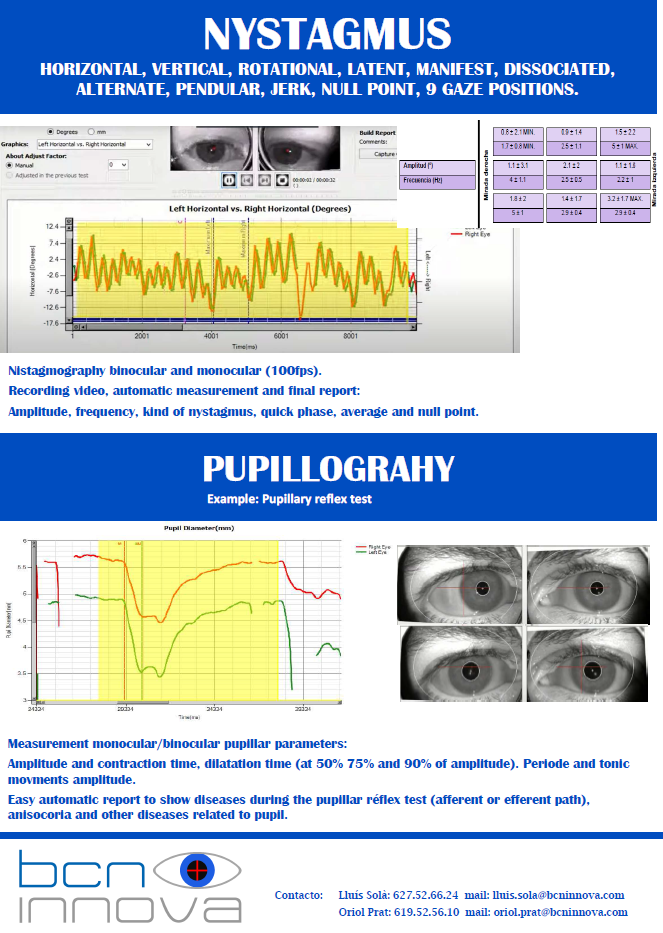

Nistagmaris is a medical device equipped with 2 infrared cameras with an image recognition for the measurement of ocular motility. This device analyzes Nystagmus and other related pathologies. Measurements in any gaze position. Records video, takes photo and graphic plots. Results in PDF report with graphic plots and measurements. You can analyze all kind of Nystagmus. You could measure Horizontal, vertical, rotational, jerk, pendular, latent, manifest, disociated, alternate, null point. It's quick, easy and reliable.
Brochure
|
Jerking Nystagmus |
High Intensity Nystagmus |
Pendular Nystagmus |
Other Nystagmus |

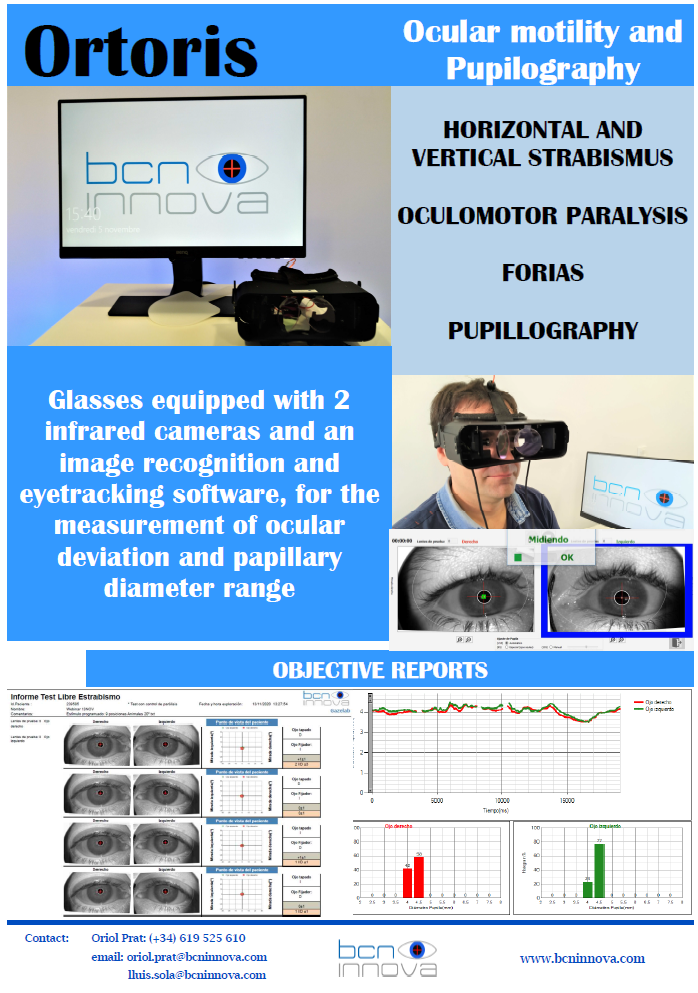

Ortoris is a medical device, equipped with 2 infrared cameras with an image recognition for the measurement of the ocular motility. You could measure Strabismus deviation (Phorias, Tropias, Palsy), and it has a functionality for the measurement of the Pupil Diameter in different light conditions. Reports are in PDF with photos and plots. All test is recorded in video. It's quick, easy and reliable.
Brochure
|
Exotropia and Vertical deviation |
Endroptria |
Strabismus Test |
Pupil Dynamics |

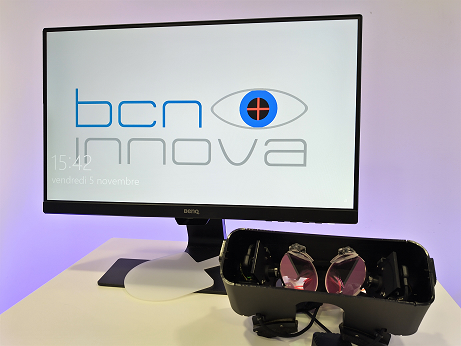

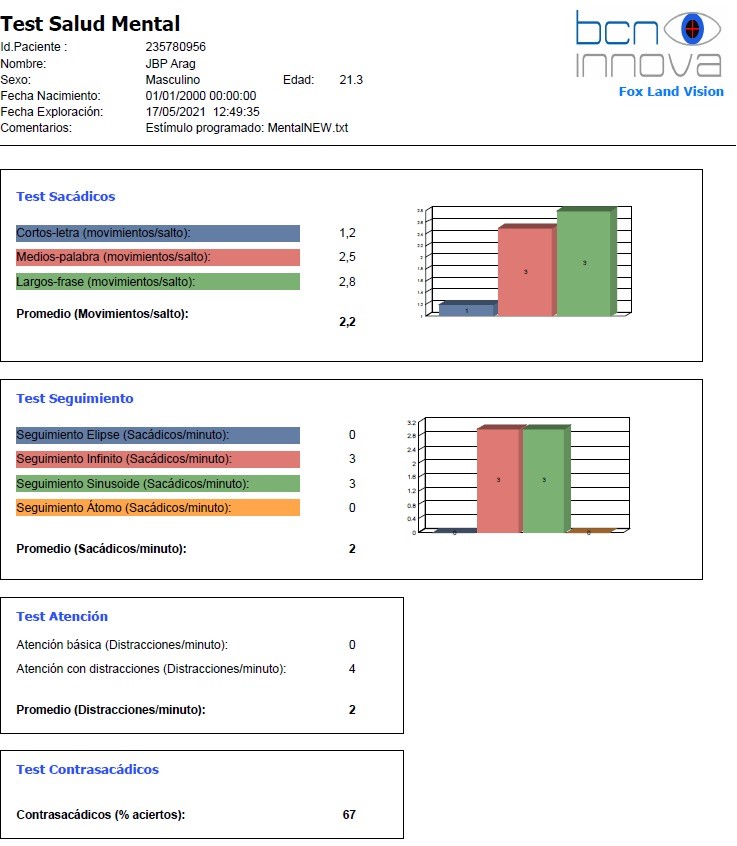

Mentaris is a medical device with glasses equipped with infrared camera with an image recognition for the measurement of quick saccade movements, fixations when the patient is looking at Stimulus on a Screen monitor. You could select different stimulus (saccade, pursuit movements ellipse, screw, atom movements and more, and also static photos). Mentaris records movements and videos during the test. finally, all the results are built in PDF file (saccades movements, heatamp). It's quick, easy and reliable.
Brochure
|

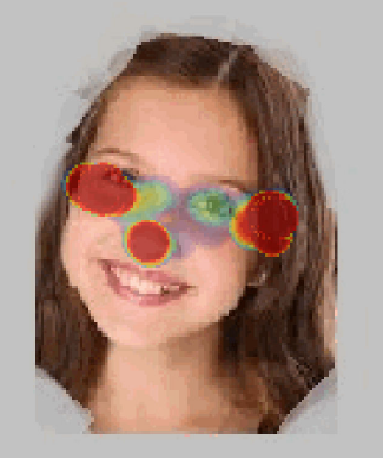

Heat Maps
|
Intra saccades
|
Mentaris - Stimulus |
